Oracle have announced new systems based on the new SPARC T5 and M5 processors

Apr 02, 2013 | 5 minutes read
Share this:

Tags: Press

Oracle have announced new systems based on the new T5 and M5 processors (thank you Henkis, from It's a UNIX system!, for the following short resume):

  1. T5 16 cores @ 3.6GHz 8MB L3$ 1-8 socket systems PCIe 3.0
  2. M5 6 cores @ 3.6GHz 48MB L3$ 32 socket system PCIe 3.0

The T5 has doubled the number of S3 cores from the T4 and increased the clock frequency to 3.6GHz.

The M5 processor is also based on the S3 core (rebranded M4) clocked at 3.6Ghz but is has 6 cores and 48MB L3$. The M systems supports up to 32 M5 processor so a fully configured systems will have 192 cores and 1536 strands (hardware threads). The M5-32 have 32TB of memory in a single system.

Example of a SPARC T5 configuration:

  • 8 CPU x 16 cores x 8 compute threads = 1024 vCPU
  • 4TB of RAM
  • 8 x 600GB = 4.8TB (10KRPM SAS)
  • 4 x 10GbE
  • 8 RU (Rack Unit)
  • Support Oracle Solaris 10 and Solaris 11
  • Logical Domains (up to 128 by chassis), and Zones (8192 per OS instance)
  • Public list price: 626,000$

Example of a SPARC M5 configuration:

  • 32 CPU x 6 cores x 8 compute threads = 1536 vCPU
  • 32TB of RAM
  • Support Oracle Solaris 10 and Solaris 11
  • Dynamic Domains (up to 4 by chassis), Logical Domains (up to 512 by chassis), and Zones (8192 per OS instance)
  • Public list price: nothing public ;)

All new systems both T5 and M5 supports LDOM (Oracle VM for SPARC), plus the old Dynamic Domain technology for the M5. The M5 gets an ILOM as Service Processor (as for T5 and the x86 server lines), exit the legacy XSCF.

New SPARC Servers Redefine the Economics of Enterprise Computing: Deliver Extreme Performance and Value for Database and Enterprise Applications, Trump the Competition on Multiple Business-Critical Workloads.

Oracle is launching its much-awaited Sparc T5 processors for entry and midrange servers, along with Sparc M5 processors to effectively replace the iron it currently resells from server and chip partner Fujitsu.

The T5-8 maxxes out at 128 cores, 1,024 threads, and 4TB of memory [...]

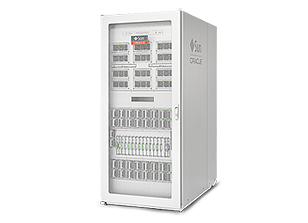

At the moment, Oracle is shipping only one box based on the Sparc M5, with 32 sockets, called the Sparc M5-32 (obviously). Fully configured, this big-iron box weighs in at 192 cores, 1,536 threads, and 32TB of main memory. No one has as much memory in a single image today – not IBM, not Silicon Graphics, not HP, and not Fujitsu.

The Sparc M5-32 box puts Oracle/Sun back into big iron.

Having announced the T5 servers doesn't make the T4s go away. It is not a platform replacing technology, but a platform extending one! Oracle is going to offer SPARC T4 and T5 servers side-by-side!

Oracle this morning launched the SPARC T5 processor and servers based on it which the company says are the fastest machines currently in the world.

Ellison aims his first Oracle 'mainframe' at Big Blue.

"These machines deliver better integer performance than the IBM Power series," proclaimed Ellison. "The T5 microprocessor itself delivers better integer performance than IBM's PowerPC chip. Now that is really extraordinary, because IBM has had that lead for a very, very long time for integer rate performance, but that lead now moves over from IBM Power to Sparc T5.

"A lot of people are surprised by this," continued Ellison. "When Oracle bought Sun, a lot of people thought the Sparc microprocessor was a real laggard. There were a lot of people who believed that we would never catch up. Well, we have done better than catch up. We caught up, and then we passed the competition. We passed x86 and we passed IBM Power."

Announcing New SPARC Servers: Webcast replay.

The "Oracle Processor Core Factor Table" has been updated in order to include SPARC T5 and M5: It's 0.5 for both.

Performance & Best Practices

  1. SPARC T5-8 Produces TPC-C Benchmark Single-System World Record Performance
  2. SPARC T5-8 Delivers SPECjEnterprise2010 Benchmark World Record Performance
  3. SPARC T5-2 Achieves SPECjbb2013 Benchmark World Record Result
  4. SPARC T5-8 Realizes SAP SD Two-Tier Benchmark World Record for 8 Chip Systems
  5. SPARC T5 Systems Deliver SPEC CPU2006 Rate Benchmark Multiple World Records
  6. SPARC T5-2 Achieves JD Edwards EnterpriseOne Benchmark World Records
  7. SPARC T5-2 Scores Siebel CRM Benchmark World Record
  8. SPARC T5 Systems Produce Oracle TimesTen Benchmark World Record
  9. SPARC T5-8 Delivers Oracle OLAP World Record Performance
  10. SPARC T5-2 Achieves ZFS File System Encryption Benchmark World Record
  11. SPARC T5-2 Obtains Oracle Internet Directory Benchmark World Record Performance
  12. SPARC T5-2 Scores Oracle FLEXCUBE Universal Banking Benchmark World Record Performance
  13. SPARC T5-2 Performance Running Oracle Fusion Middleware SOA
  14. SPARC T5-1B Performance Running Oracle Communications ASAP
  15. SPARC M5-32 Produces SAP SD Two-Tier Benchmark World Record for SAP Enhancement Package 5 for SAP ERP 6.0

So that's quite a "boom." With the launch of the new SPARC T5 and M5 series of servers, we've set over a dozen new performance records, and shown that back in 2010 Oracle did indeed establish a SPARC roadmap that it could execute on.

Every year, the best of engineering talent comes together in academia for Hot Chips conference, to present the best system designs. During Hot Chips 24, Session 9 - the SPARC T5 was presented by Sebastian Turullols and Ram Sivaramakrishnan from Oracle on Wednesday, August 29, 2012. This processor was released 6 months later, by Oracle with their T5 systems on Tuesday March 26, 2013.

The cryptography benchmark suite was internally developed by Oracle to measure the maximum throughput of in-memory, on-chip encryption operations that a system can perform. Multiple threads are used to achieve the maximum throughput. Systems powered by Oracle's SPARC T5 processor show outstanding performance on the tested encryption operations, beating Intel processor based systems.
